KRASO Pump Sump - Special - 200 x 200 x 170 cm

KRASO Pump Sump - Special - 200 x 200 x 170 cm

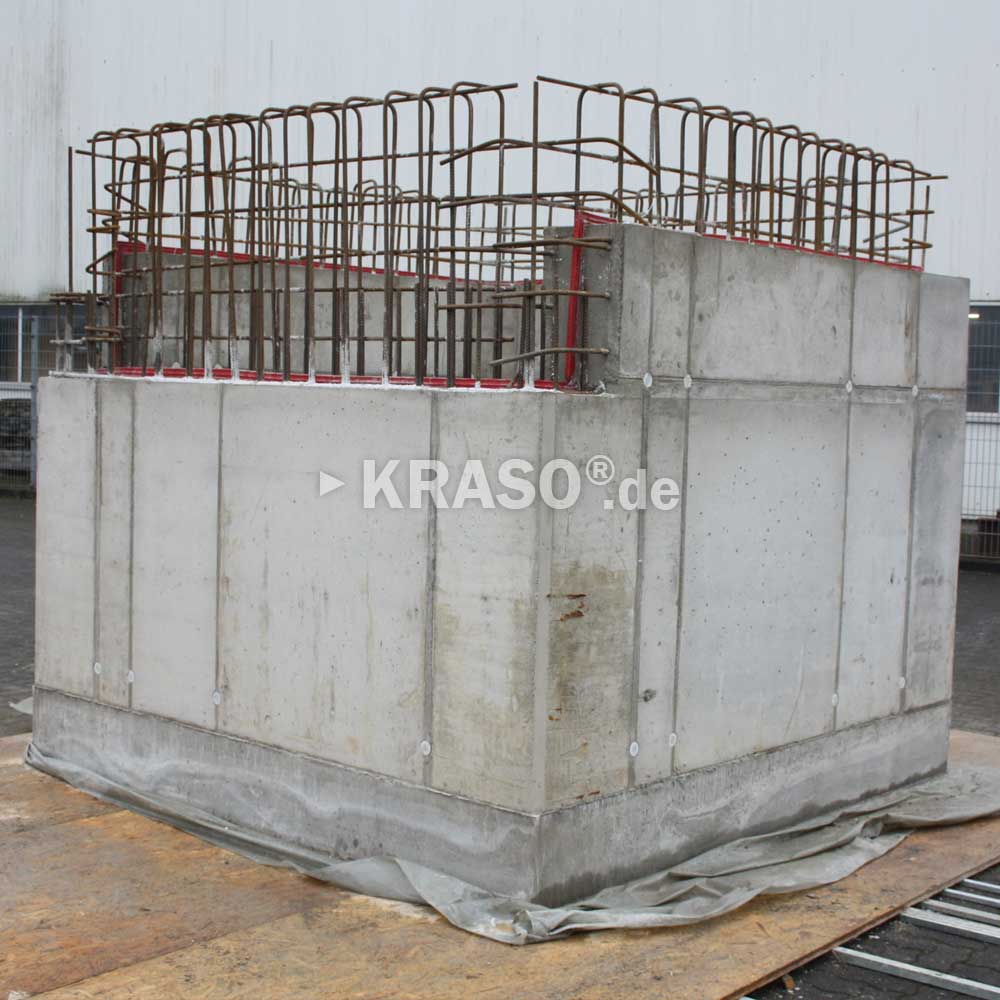

KRASO Pump Sump - special -

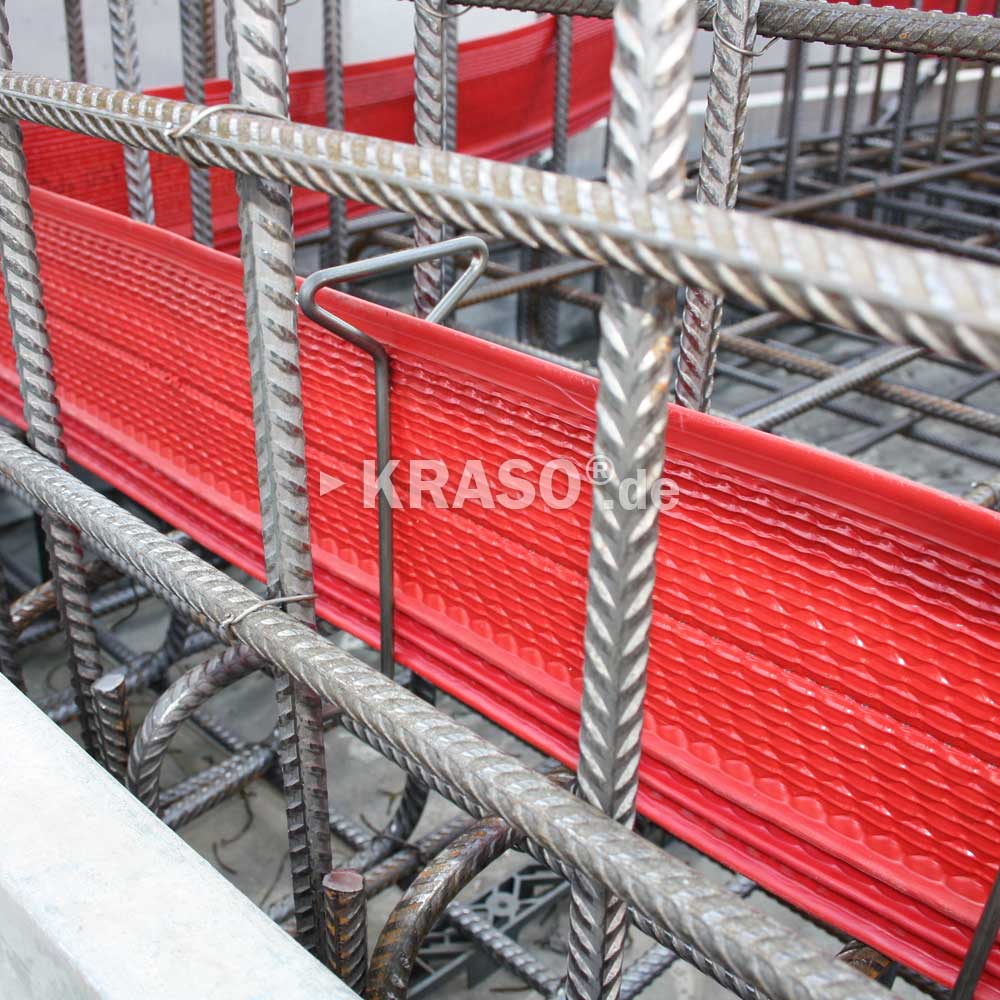

internal dimension approx. 200 x 200 x 170 cm, made of waterproof concrete, with 20 cm thick, reinforced wall and floor panels (20 kg/ per cum), rebar connection approx. 8/15 double-rowed, surrounding water pressure tight, MPA-tested construction joint tape KRASO Duo-Fix 150 "plus", 1 x KRASO Pipe Connection DN 160, KG 2000, 4 crane lifting lugs Rd30

Total weight approx. 18,2 t

BV: Offenbach


KRASO Special Designs - pump sumps and lift pits
» Made of waterproof concrete and produced by us exactly as per customer's requirements! All dimensions (width, length, height, wall thickness) are variable.
» Mounting parts such as pipe penetrations, casings or anchor rails (for lift pits) are accurately installed.
» Weather-independent production of concrete shafts up to a total weight of 20 t - but also pump sumps and lift pits with significantly higher weights can be realised.
» Save time, money, labour and additional drainage! We are happy to advise you personally!
