KRASO Pump Sump - Special - 170 x 110 x 65 cm

KRASO Pump Sump - Special - 170 x 110 x 65 cm

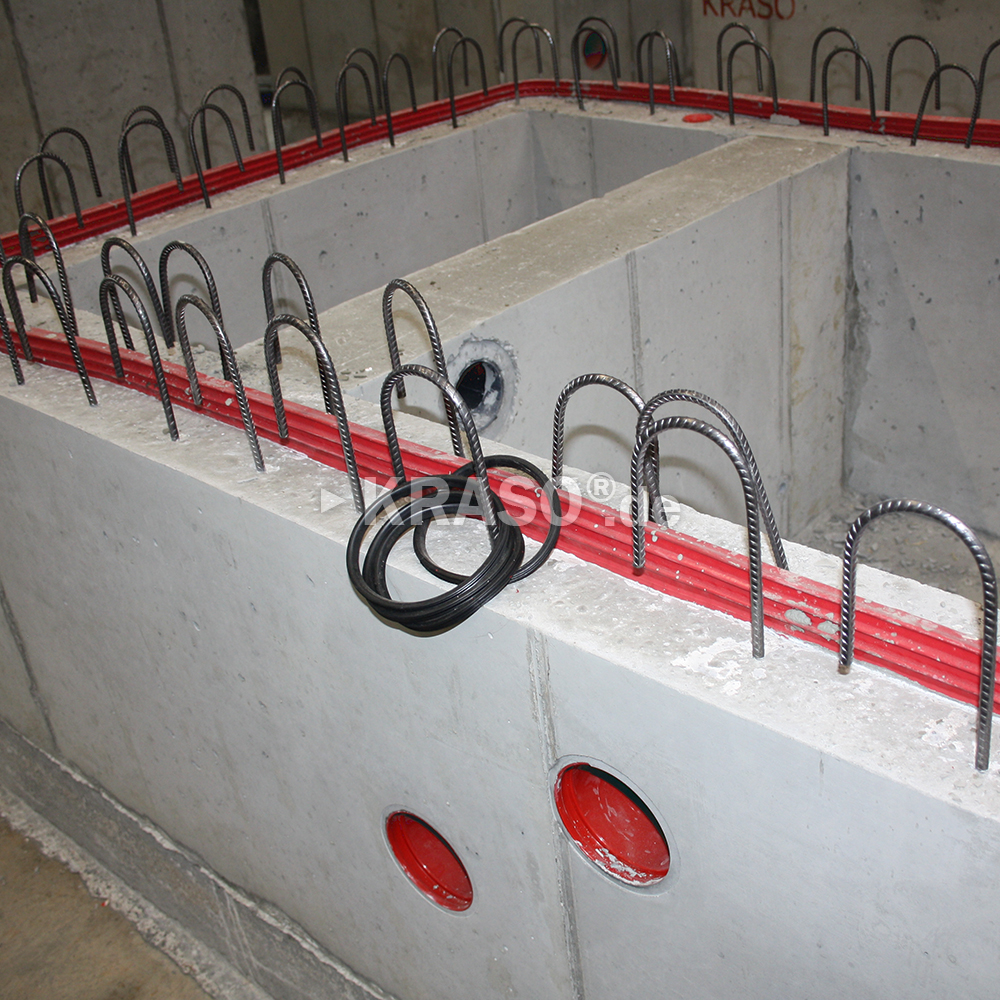

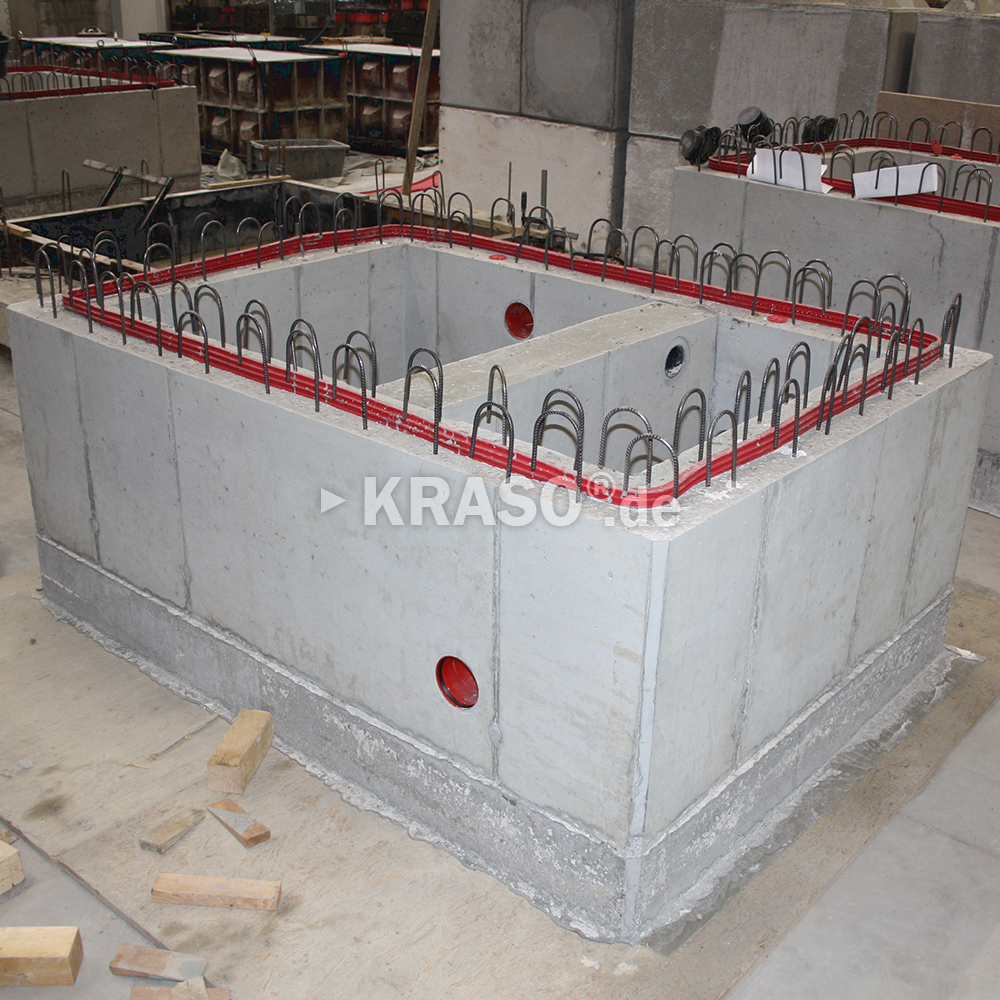

KRASO Pump Sump - special -
internal dimension approx. 170 x 110 x 65 cm

incl. centre wall, made of waterproof concrete, with 20 cm thick, reinforced wall and floor panels ( 20 kg/ per cum), rebar connection approx. 8/15 double-rowed, surrounding water pressure tight, MPA-tested construction joint tape KRASO Duo-Fix 150 "plus", 3 KRASO Pipe Connections DN 110 + 1 piece ID 80 in the centre wall, 4 crane lifting lugs Rd16

Total weight approx. 4,5 t

BV: Münster


KRASO Special Designs - pump sumps and lift pits
» Made of waterproof concrete and produced by us exactly as per customer's requirements! All dimensions (width, length, height, wall thickness) are variable.
» Mounting parts like pipe penetrations, casings or anchor rails (for lift pits) are accurately installed.
» Weather-independent production of concrete shafts up to a total weight of 20 tons - but also pump sumps and lift pits with significantly higher weights can be realised.
» Saves money, labour, time and additional drainage! We are happy to advice you personally!
