KRASO Pump Sump - Special - 100 x 100 x 80 cm

KRASO Pump Sump - Special - 100 x 100 x 80 cm

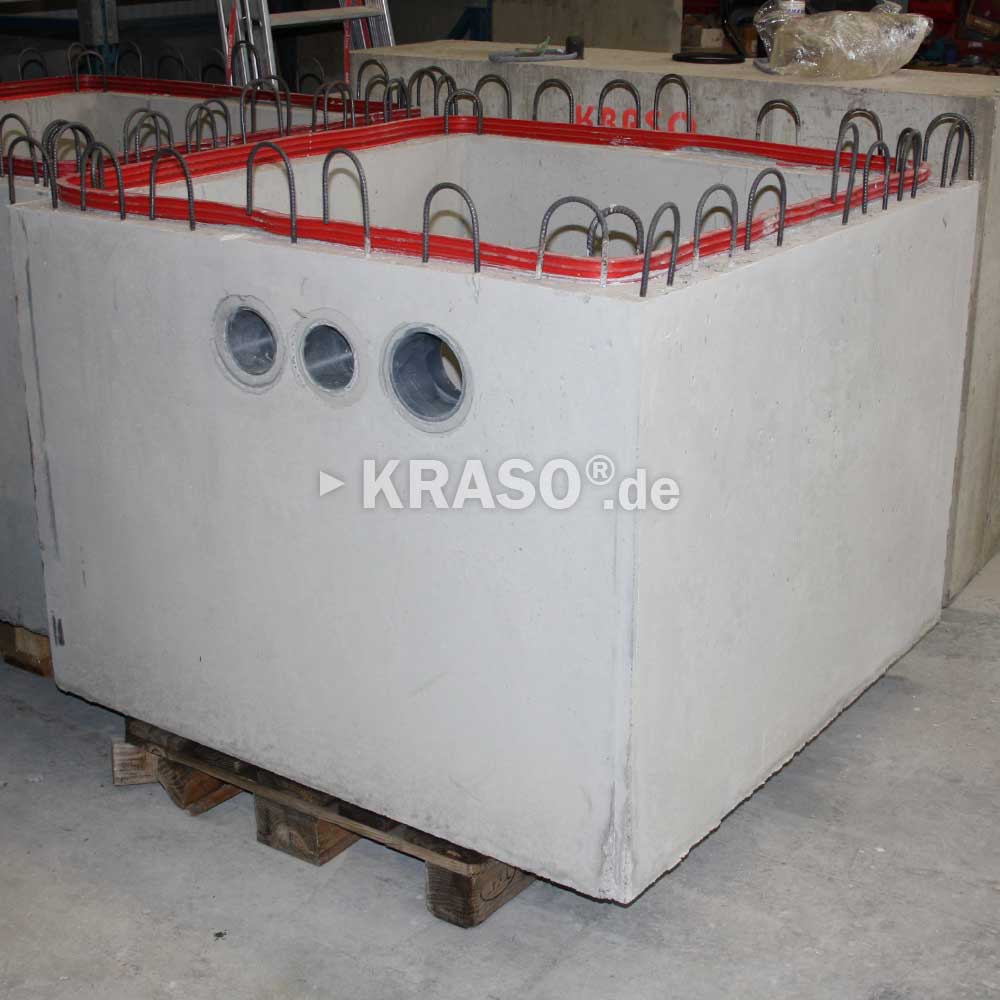

KRASO Pump Sump - special -
internal dimension approx. 100 x 100 x 80 cm

made of waterproof concrete, with 10 cm thick, reinforced wall and floor panels (20 kg/ per cum), rebar connection approx. 8/15 double-rowed, surrounding water pressure tight, MPA-tested construction joint tape KRASO Duo-Fix 150 "plus", 4 crane lifting lugs M20, KRASO Pipe Connections 2 x DN 110 + 2 x FE ID 100 + 1 x FE ID 125, with integrated partition panel 10 cm thick (central in the shaft, as settling chamber).

Total weight approx. 1,8 t

BV: München


KRASO Special Designs - pump sumps and lift pits
» Made of waterproof concrete and produced by us exactly as per customer's requirements! All dimensions (width, length, height, wall thickness) are variable.
» Mounting parts such as pipe penetrations, casings or anchor rails (for lift pits) are accurately installed.
» Weather-independent production of concrete shafts up to a total weight of 20 t - but also pump sumps and lift pits with significantly higher weights can be realised.
» Save time, money, labour and additional drainage! We are happy to advise you personally!
