KRASO Pump Sump - Special - 100 x 100 x 80 cm

KRASO Pump Sump - Special - 100 x 100 x 80 cm

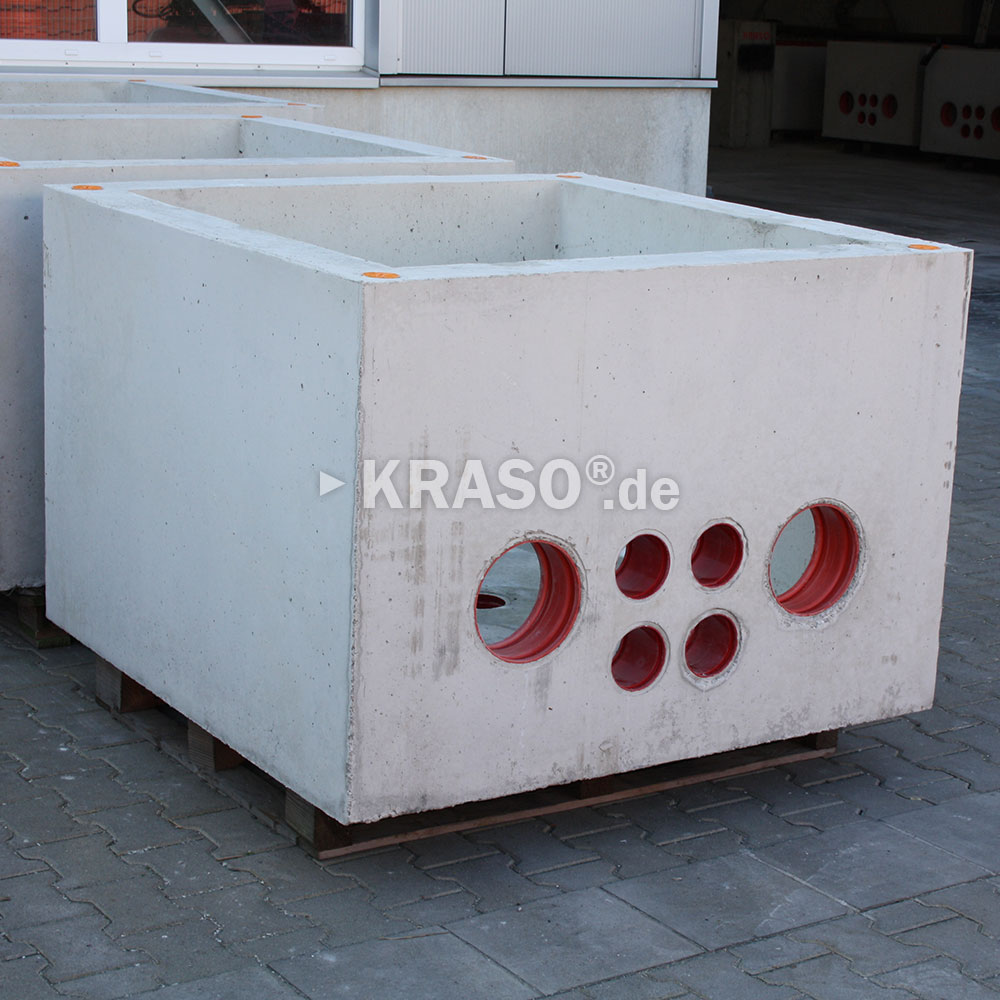

KRASO Pump Sump - special -
internal diameter approx. 100 x 100 x 80 cm, made of waterproof concrete, with 12 cm thick, reinforced wall and floor panels (20 kg / per cum),
KRASO Pipe Connections: 2 x DN 200, 4 x DN 110, 1 x DN 110 in the base plate

Total weight approx. 1,5 t

BV: Essen

Info

KRASO Special Designs - pump sumps and lift pits
» Made of waterproof concrete and produced by us exactly as per customer's requirements! All dimensions (width, length, height, wall thickness) are variable.
» Mounting parts such as pipe penetrations, casings or anchor rails (for lift pits) are accurately installed.
» Weather-independent production of concrete shafts up to a total weight of 20 t - but also pump sumps and lift pits with significantly higher weights can be realised.
» Save time, money, labour and additional drainage! We are happy to advise you personally!
