KRASO Plastic Flange Plate Type KFP - foil flange - split

KRASO Plastic Flange Plate Type KFP - foil flange - split

for installation of pipes or cables using KRASO Sealing Insert (not included in the delivery), core drillings are not required, a simple opening or recess in the wall is enough, against pressing water up to 3,0 bar, plate made of 60 mm thick, high-strength plastic, EPDM flat seal
ID = InternalDiameter

A proven solution thought out again

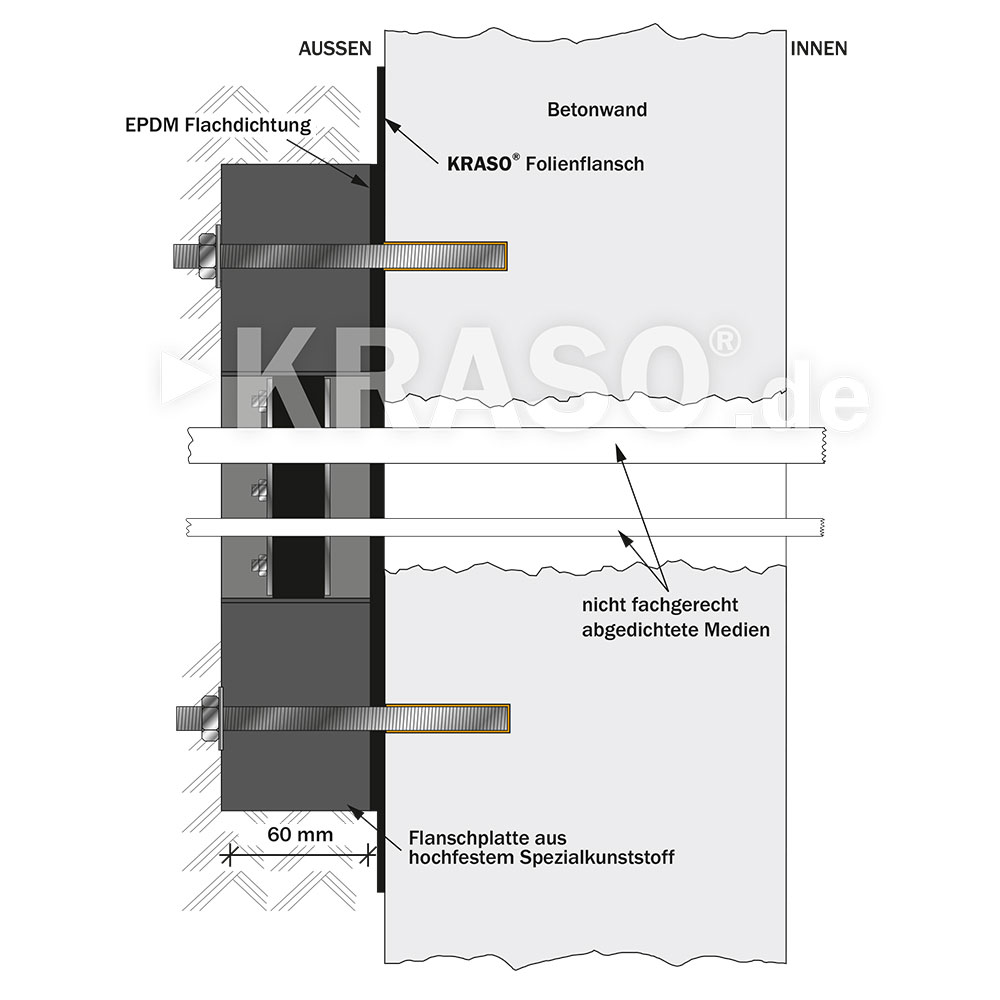

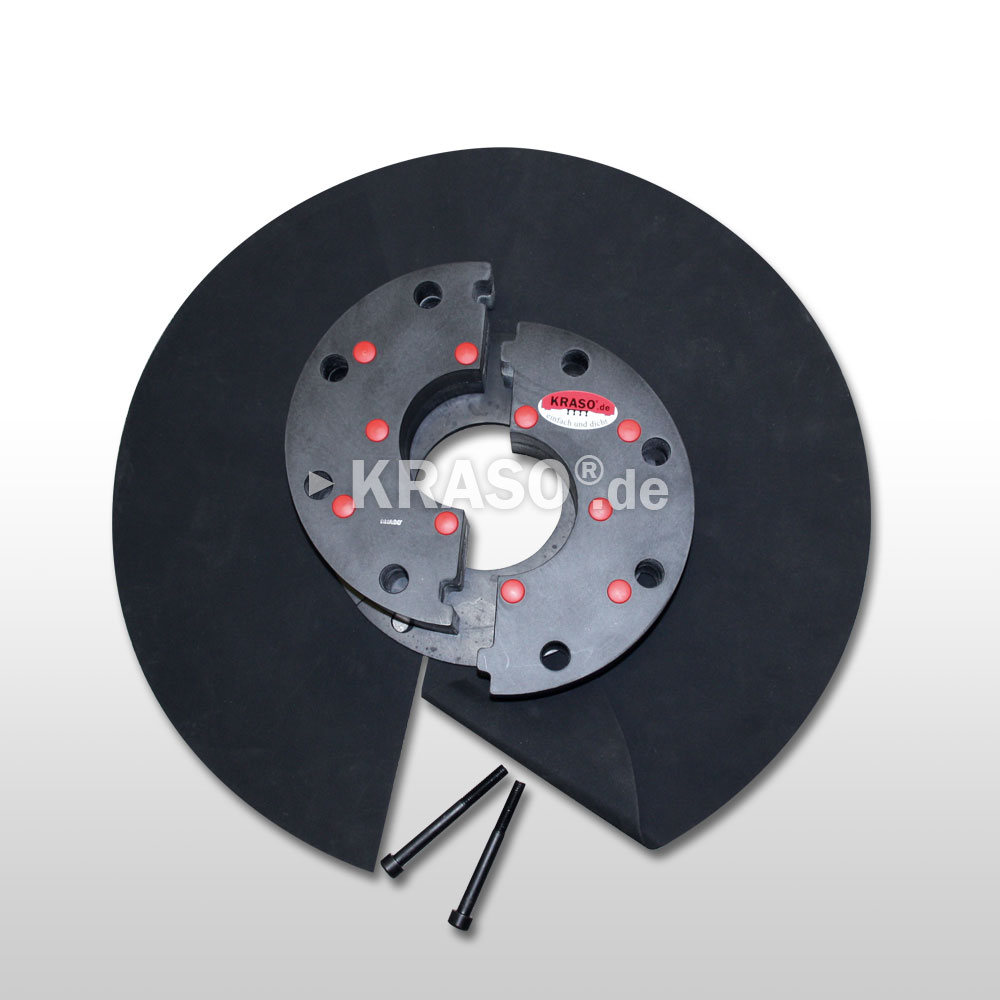

This innovative solution can be installed retrospectively as a "split casing" in front of a wall with area sealing, in just the same way as in front of a wall made of waterproof concrete. No core drilling required, the media pipes do not need to be separated for installation. The very latest CNS production technology makes absolute dimensional compliance possible. There are no tolerances such as are usual with solutions involving metal. Thanks to the tongue and groove system, the two halves of the plastic flange plate automatically pull together with a 100% accurate fit. Installation errors are thus avoided through this innovation. The light split plastic flange plate made of high-strength special plastic can be installed very easily in front of the wall by just one person.

Info

KRASO Plastic Flange Plate Type KFP - foil flange - split
Scope of supply:
KRASO Plastic Flange Plate Type KFP - foil flange - split, against pressing water up to 3,0 bar, plate made of 60 mm thick, high-strength special plastic, with EPDM flat seal to the component and fixing material, adhesive and sealant KRASO PU 50


KRASO PU 50
hochwertiger, dauerelastischer und haftstarker PU-Dichtstoff, auch auf feuchtem Untergrund verwendbar, empfohlen für alle Produkte mit KRASO Folienflansch, Farbe schwarz, 290 ml - Kartusche für Kartuschenpressen
KRASO KFP Montagekit
passend für KRASO Kunststoffflanschplatte Typ KFP: KRASO Drehmomentschlüssel, 8er Steckschlüsseleinsatz, Ø19er Nuss, Kartuschenpresspistole, Ausbläser für Bohrlöcher
KRASO Flanschplatte galvanisch verzinkt
zur Durchführung von Rohren oder Kabeln mittels KRASO Dichteinsatz (nicht im Lieferumfang enthalten), vor einer Kernbohrung in Beton oder Mauerwerk, Stahl galvanisch verzinkt, mit angeschweißter Rohrhülse, EPDM Flachdichtung. ID = InnenDurchmesser | WU-Richtlinie: Beanspruchungsklasse 1 + 2.Gegen Mehrpreis lieferbar:+ Geteilte Ausführung+ Fest- Losflanschkonstruktion nach DIN 18195-T9+ WU-Richtlinie: Beanspruchungsklasse 1+ 2.
KRASO Flanschplatte Edelstahl V2A
zur Durchführung von Rohren oder Kabeln mittels KRASO Dichteinsatz (nicht im Lieferumfang enthalten), vor einer Kernbohrung in Beton oder Mauerwerk, aus rostfreiem Edelstahl V2A, EPDM Flachdichtung. ID = InnenDurchmesser | WU-Richtlinie: Beanspruchungsklasse 1 + 2.Gegen Mehrpreis lieferbar:+ Geteilte Ausführung+ Fest- Losflanschkonstruktion nach DIN 18533+ V4A
