KRASO Foil Clamping Flange Type FKF - in the core drilling

KRASO Foil Clamping Flange Type FKF - in the core drilling

for the sealing of media of all kinds of materials in the core drilling, against pressing water up 2,5 bar

The revolution in the integration of media lines into the sealing of larger areas
» Suitable for all external diameters of media lines and for all materials
» We can adjust the type of sealing sheets or foils: e.g. PVC, EPDM, FPO, RESITRIX, PP, PE, KRASO-Fol, PYE-PV 200 S5 etc.

Info

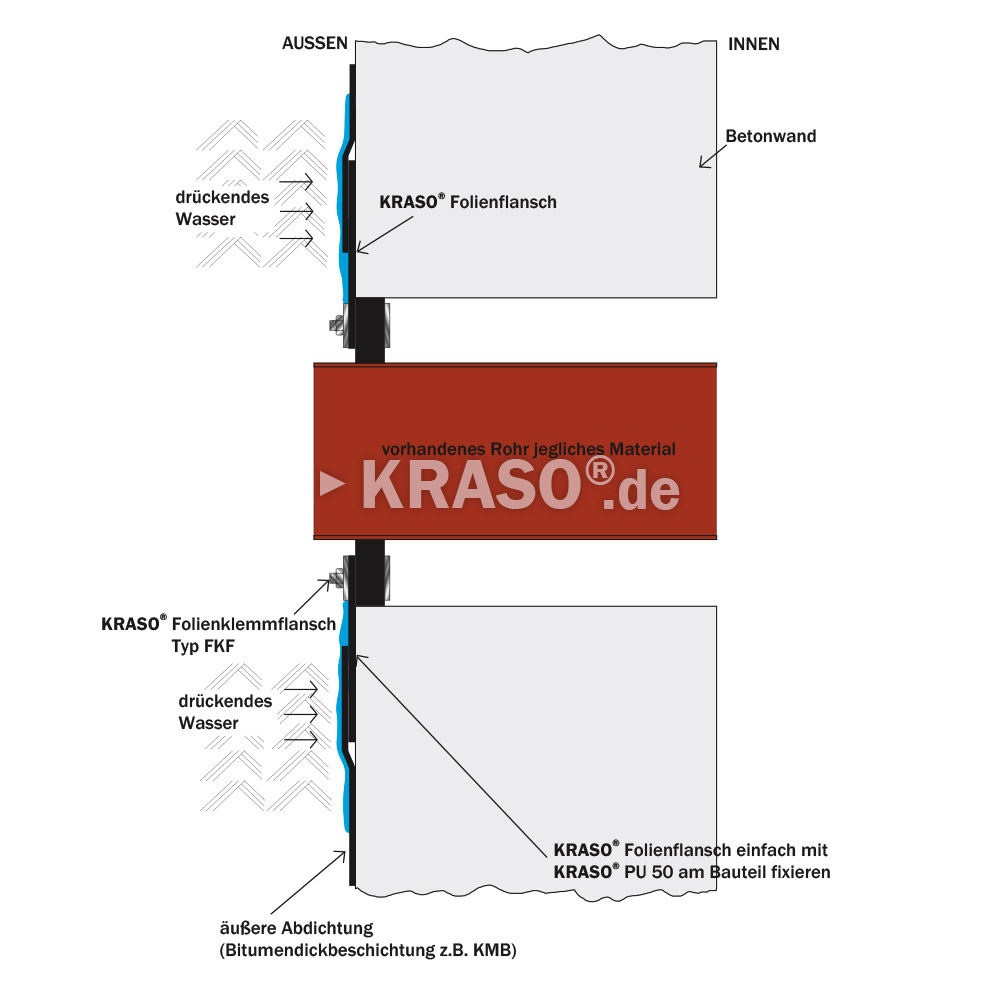

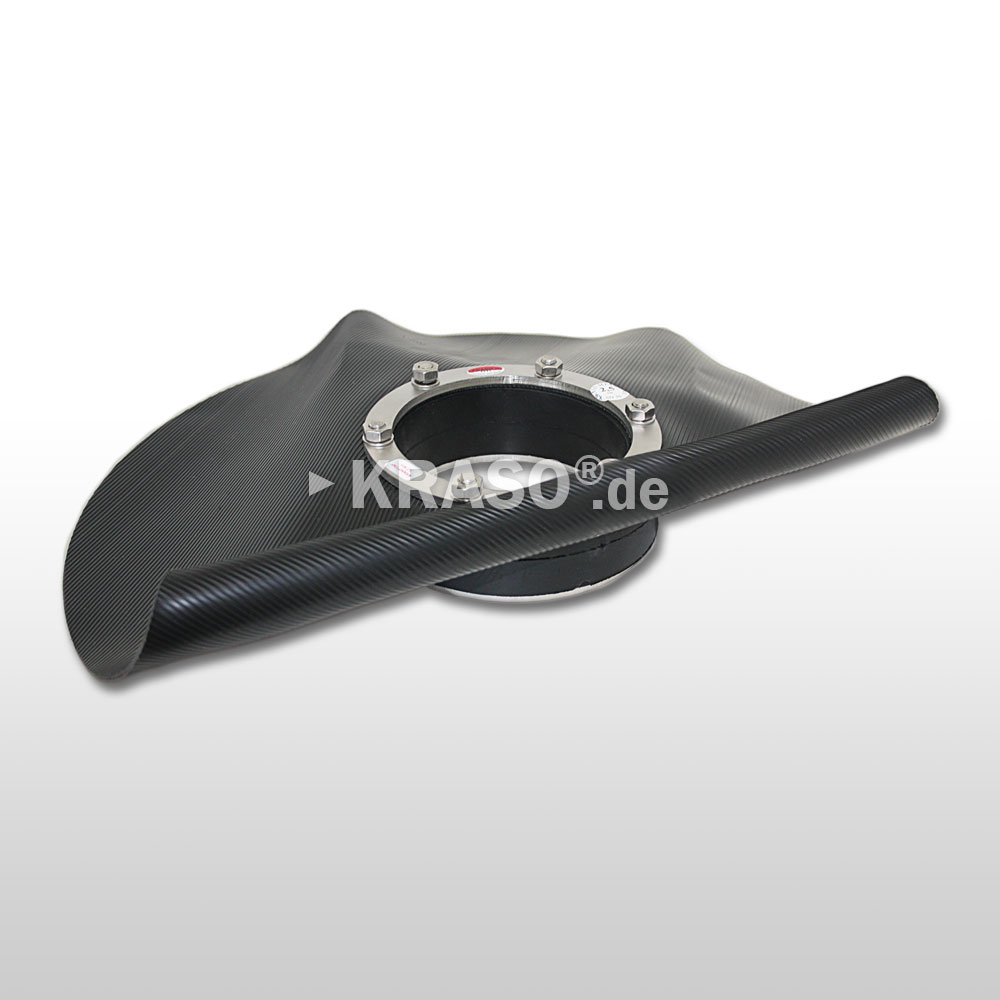

KRASO Foil Clamping Flange Type FKF - in the core drilling
Scope of supply:
KRASO Foil Clamping Flange Type FKF - in the core drilling, with foil flange 1,2 mm, according DIN 16937, oil- and bitumen resistant, surrounding approx.15 cm, adhesive and sealant KRASO PU 50, serrated spatula, pressure roller and pencil. Against pressing water up to 2,5 bar, non-corrosive stainless steel V2A, 30 mm seal

All sizes and diameters available on request ! Also available with other sealing sheets !


KRASO Folienklemmflansch Typ FKF
für die Abdichtung von Medien jeglicher Materialien vor einer Wand oder in der Kernbohrung, mit Folienflansch 1,2 mm, in Anlehnung an DIN 16937, öl- und bitumenbeständig, ca. 15 cm umlaufend, 30 mm Dichtung, gegen drückendes Wasser bis 2,5 bar, DrehmomentKontrollMutter KRASO DKM, rostfreier Edelstahl V2A | DIN 18533 W-1-E und W2.1-E Die Revolution in der Einbindung von Medienleitungen in Flächenabdichtungen+ Mit unserem innovativen KRASO Folienklemmflansch Typ FKF kann an jedem Rohr oder Kabel, welches glatt und stabil ist, ein Folienflansch druckwasserdicht befestigt werden! + Für jeden Außendurchmesser der Medienleitung und alle Materialien geeignet! + Die Art der Abdichtungsbahnen oder Folien kann von uns individuell angepasst werden: z.B. PVC, EPDM, FPO, RESITRIX®, PP, PE, KRASO-Fol, PYE-PV 200 S5 uvm.+ DrehmomentKontrollMutter KRASO DKM: Automatisches Drehmoment ohne Drehmomentschlüssel!+ Metallkomponenten aus rostfreiem Edelstahl V2A. + Für Neubau und Sanierung! Verschiedene Ausführungen für fast alle Situationen! + Einfache und schnelle Montage: Einbaufehler sind nahezu ausgeschlossen! + MPA-geprüft: Druckwasserdicht bis 2,5 bar! Eine Lösung für Flächenabdichtungen, die wirklich einfach und dicht ist! + IAF geprüft: Radondicht!+ Geprüft nach FHRK-Prüfgrundlage GE 101.+ DIN 18533 W1-E und W2.1-E.
KRASO PU 50
hochwertiger, dauerelastischer und haftstarker PU-Dichtstoff, auch auf feuchtem Untergrund verwendbar, empfohlen für alle Produkte mit KRASO Folienflansch, Farbe: schwarz
