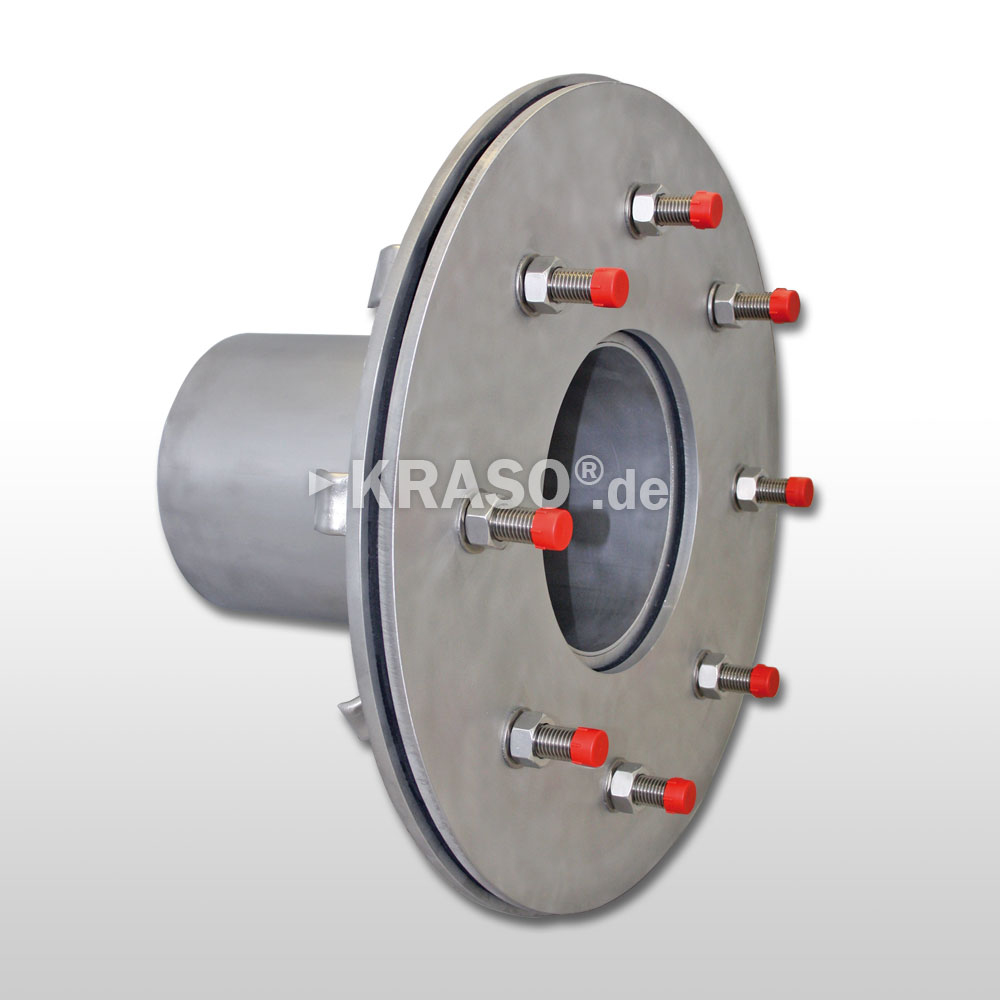

KRASO Casing Type FL/ZE - stainless steel
fixed-loose flange for concreting, with casing made of non-corrosive stainless steel, for the installation of media pipes using KRASO Sealing Insert (not included in the delivery), for buildings with exterior sealing (black tank) against pressing water / non-pressing water according DIN 18533.
ID = InternalDiameter
Info
KRASO Casing Type FL/ZE - for pressing water (DIN 18533 W2-E)
Scope of supply:
KRASO Casing Type FL/ZE, for pressing water (DIN 18533 W2-E), all components made of non-corrosive stainless steel V2A, casing with welded fixed-flange, loose-flange, dowels M8 x 100, bolts, nuts and washers M20

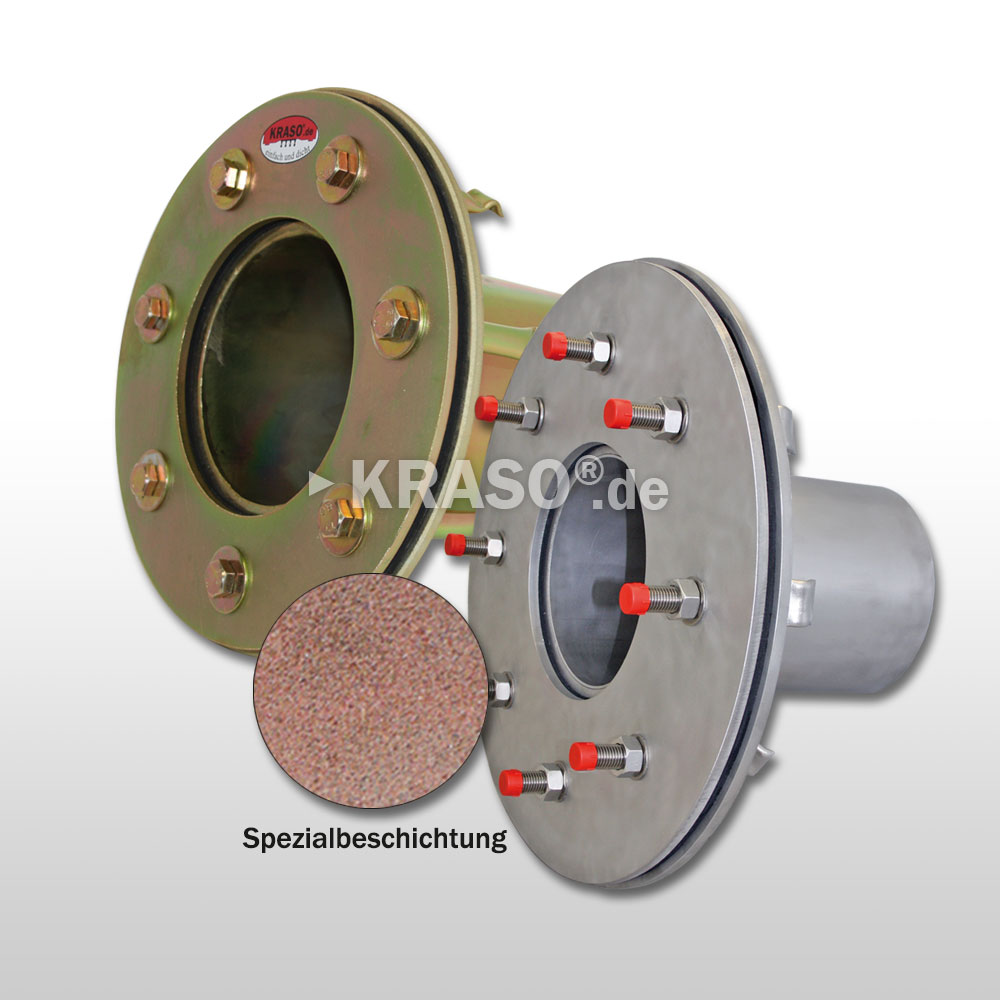

KRASO Casing Type FL/ZE - with special coating - for pressing water (DIN 18533 W2-E)
Scope of supply:
KRASO Casing Type FL/ZE, as before, but made of non-corrosive stainless steel with special coating
KRASO Casing Type FL/ZE - for non-pressing water (DIN 18533 W1-E)
Scope of supply:
KRASO Casing Type FL/ZE, for non-pressing water (DIN 18533 W1-E), all components made of non-corrosive stainless steel V2A, casing with welded fixed-flange, loose-flange, dowels M8 x 100, bolts, nuts and washers M12
KRASO Casing Type FL/ZE - with special coating - for non-pressing water (DIN 18533 W1-E)
Scope of supply:
KRASO Casing Type FL/ZE, as before, but with non-corrosive stainless steel V2A with special coating
Further diameters and wall thicknesses available on request !
