KRASO Casing Type FL/ZA - Special

KRASO Casing Type FL/ZA - Special

KRASO Casing Type FL/ZA - special
internal diameter: 2 x 200 mm + 8 x 150 mm
protrusion: approx. 80 mm

with special coating, for installation of pipes or cables of 0 to 175 mm and of 0 to 125 mm using KRASO Sealing Insert, non-corrosive stainless steel V2A for dowel fixing (bolts, nuts and washers M20) with fixed-loose flange construction for buildings with exterior sealing (black tank) against pressing water according DIN 18533 W2-E

BV: Wiesbaden

Info

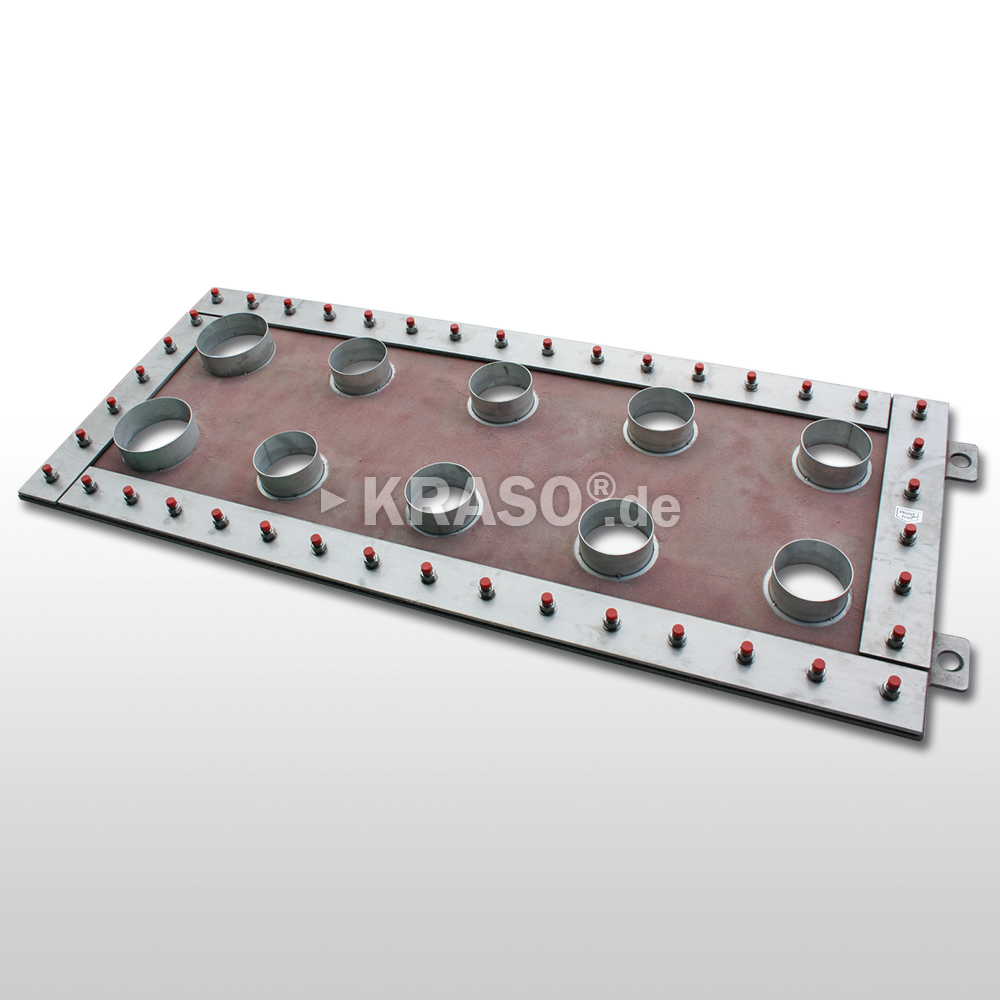

KRASO Special Designs - stainless steel
 » KRASO Special Designs made of stainless steel: thanks to modern water-jet- and laser cutting techniques we are able to produce precise special mounting parts made of stainless steel according your requirements.



KRASO Futterrohr Typ FL/ZE
fixed-loose flange for concreting, with casing, for installation of media pipes using a sealing insert (not included in scope of supply), for buildings with exterior sealing ("black tank") against pressing / non-pressing water according to DIN 18533. Available in non-corrosive stainless steel V2A or electrogalvanised with plastic casing, each with or without special coating ID = InternalDiameter | DIN 18533 W2.1 -E and W2.2 -E Fixed-loose flange for dowel-fixing or for concreting and as sealing insert+ For buildings with exterior sealing ("black tank"): according to DIN 18533 ( "sealing of below-ground structural elements")+ Each design available as separate types for pressing and non-pressing water+ Available in non-corrosive stainless steel V2A or V4A and in electrogalvanised steel+ Upon request available with special coating for buildings with thick coating (e.g. KMB)! + DIN 18533: water exposure classes W2.1 -E and W2.2 -E ("medium impact of pressing water" - water column ≤ 3 metres  ) / "high impact of pressing water" - water column ≥ 3 metres)
