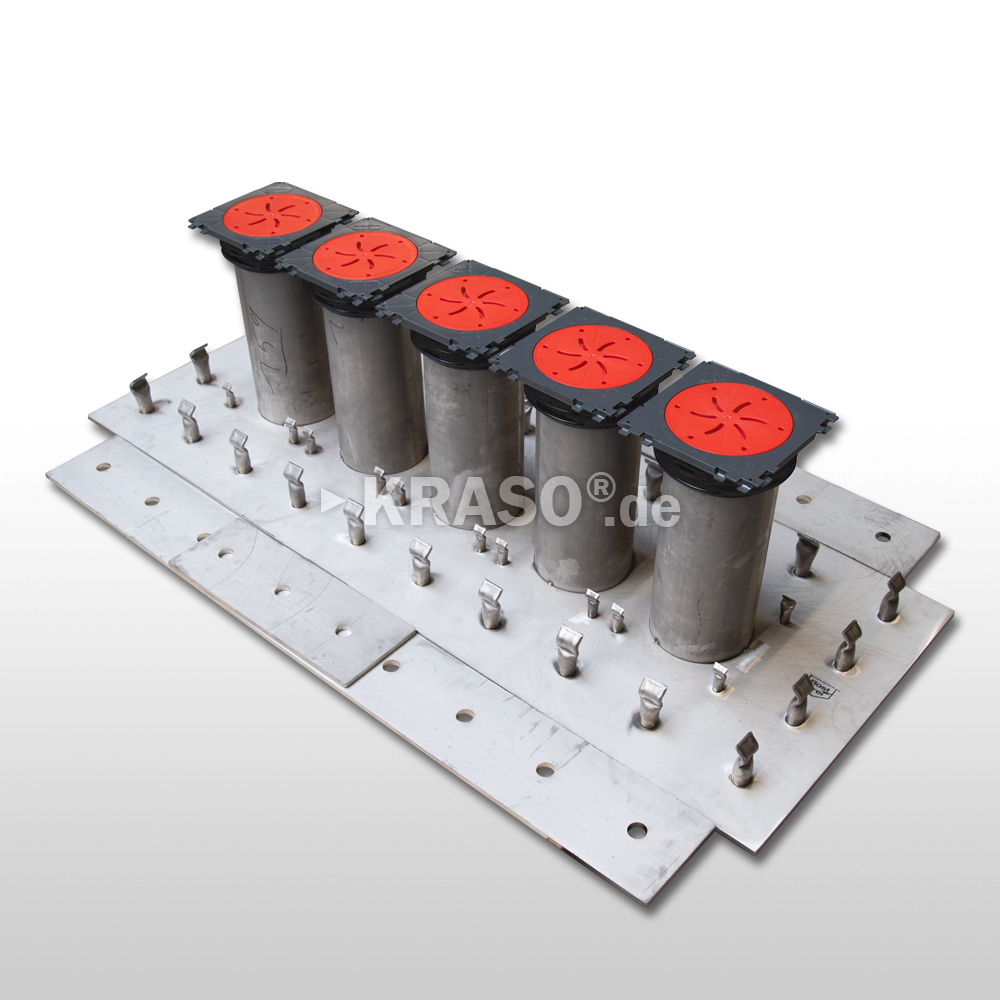

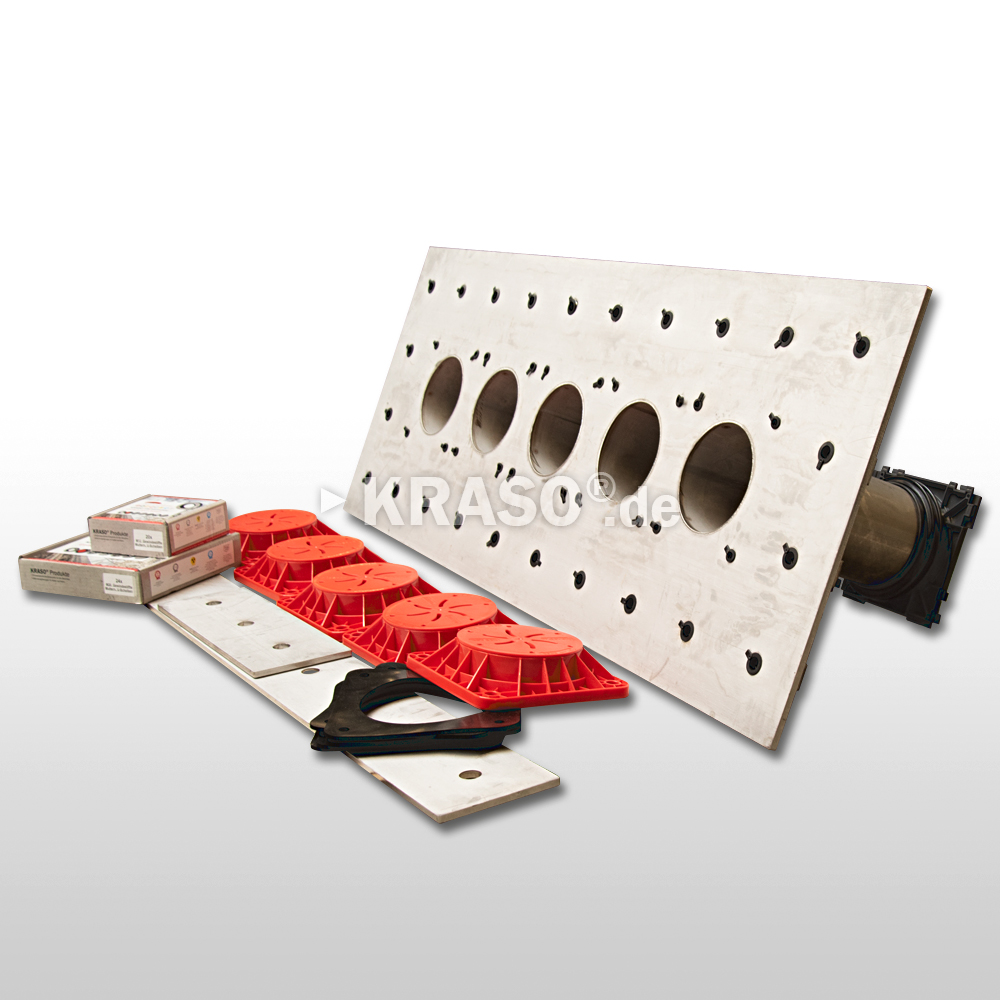

KRASO Cable Penetration KDS 150 - FL/ZE/DD - Special

KRASO Cable Penetration KDS 150 - FL/ZE/DD - Special

KRASO Cable Penetration KDS 150 - FL/ZE/DD - special
as package 1 x 5 - against pressing water according DIN 18533 W2-E

internal diameter tubular sleeve: 5 x 155 mm
wall thickness: 40 cm

double-sided, with fixed-loose flange and KRASO Protrusion Flange FDS 150 on the exterior, for concreting, for installation of media pipes using KRASO System Sealing Insert KDS 150 (not included in the delivery) or for connecting KRASO KDS 150 Accessories (e.g. system cover), with bayonet fitting, for buildings with exterior sealing (black tank) against pressing water according DIN 18533 W2-E, made of non-corrosive stainless steel V2A, with water pressure tight surrounding KRASO 2 Seal on one side and 10 x KRASO KDS 150 Closure Covers

BV: Dresden

Info

KRASO Special Designs - stainless steel
» KRASO Special Designs made of stainless steel: thanks to modern water-jet- and laser cutting techniques we are able to produce precise special mounting parts made of stainless steel according your requirements.

KRASO Futterrohr Typ FL/ZE
fixed-loose flange for concreting, with casing, for installation of media pipes using a sealing insert (not included in scope of supply), for buildings with exterior sealing ("black tank") against pressing / non-pressing water according to DIN 18533. Available in non-corrosive stainless steel V2A or electrogalvanised with plastic casing, each with or without special coating ID = InternalDiameter | DIN 18533 W2.1 -E and W2.2 -E Fixed-loose flange for dowel-fixing or for concreting and as sealing insert+ For buildings with exterior sealing ("black tank"): according to DIN 18533 ( "sealing of below-ground structural elements")+ Each design available as separate types for pressing and non-pressing water+ Available in non-corrosive stainless steel V2A or V4A and in electrogalvanised steel+ Upon request available with special coating for buildings with thick coating (e.g. KMB)! + DIN 18533: water exposure classes W2.1 -E and W2.2 -E ("medium impact of pressing water" - water column ≤ 3 metres  ) / "high impact of pressing water" - water column ≥ 3 metres)
