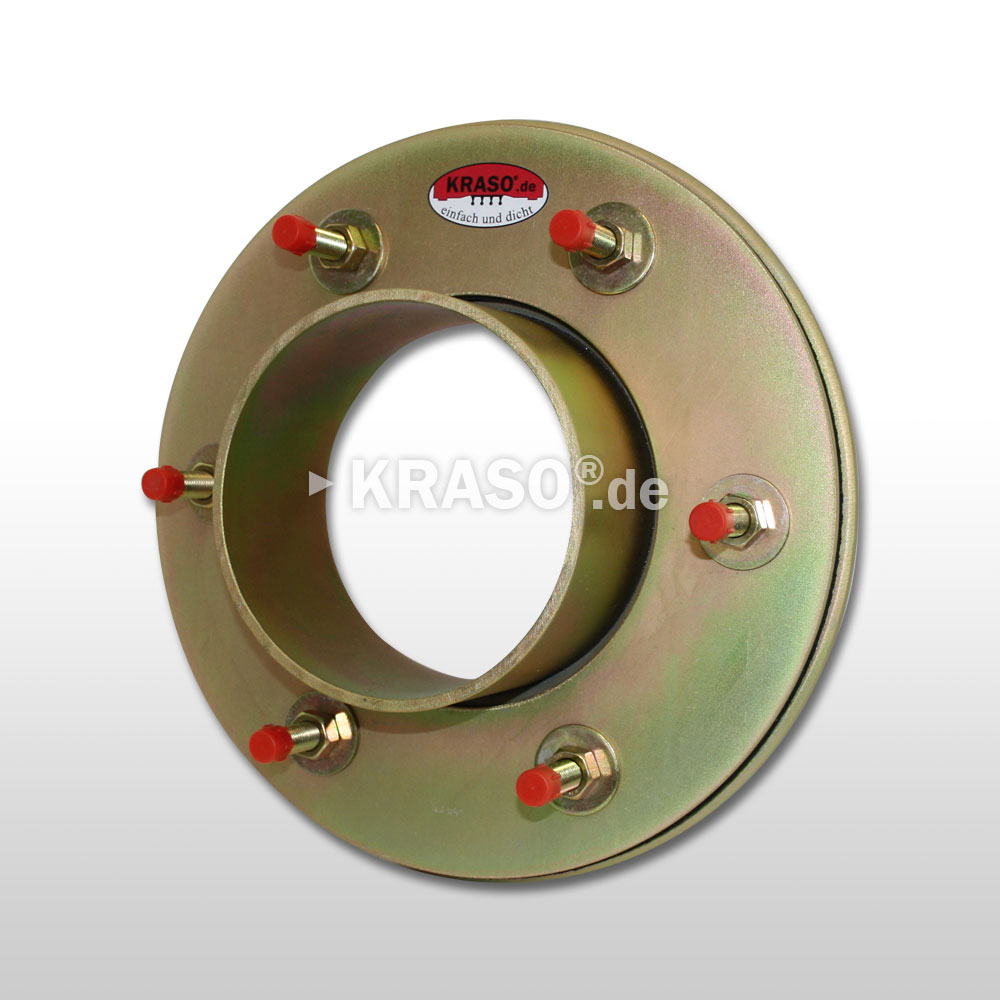

KRASO Casing Type FL/ZA - electrogalvanised

KRASO Casing Type FL/ZA - electrogalvanised

fixed-loose flange for dowel-fixing, with electrogalvanised steel casing, for installation of media pipes using KRASO Sealing Insert (not included in the delivery), for buildings with exterior sealing (black tank) against pressing water / non-pressing water according DIN 18533.
ID = InternalDiameter

Info

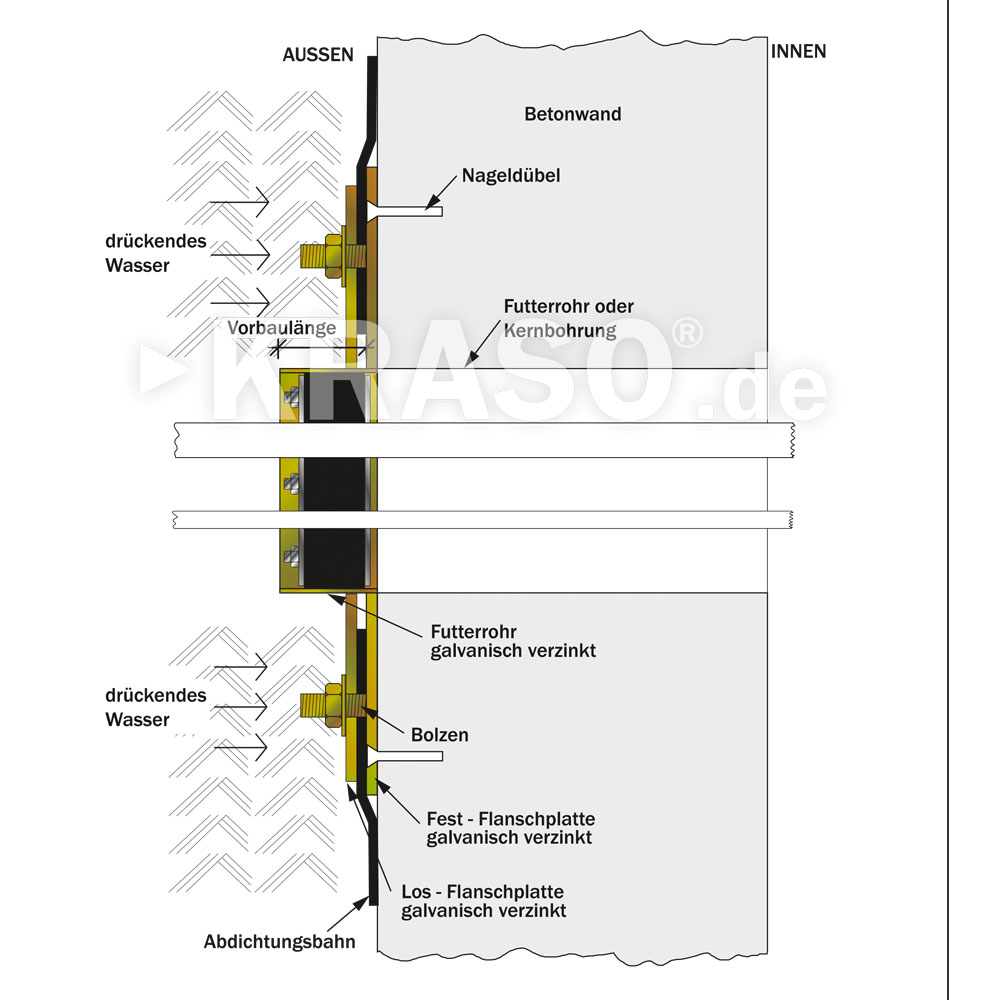

KRASO Casing Type FL/ZA  - for pressing water (DIN 18533 W2-E)
Scope of supply:
KRASO Casing Type FL/ZA, for pressing water (DIN 18533 W2-E), all components are made of electrogalvanised steel, casing with welded fixed-flange, loose-flange, dowels M8 x 100, nuts and washers M20

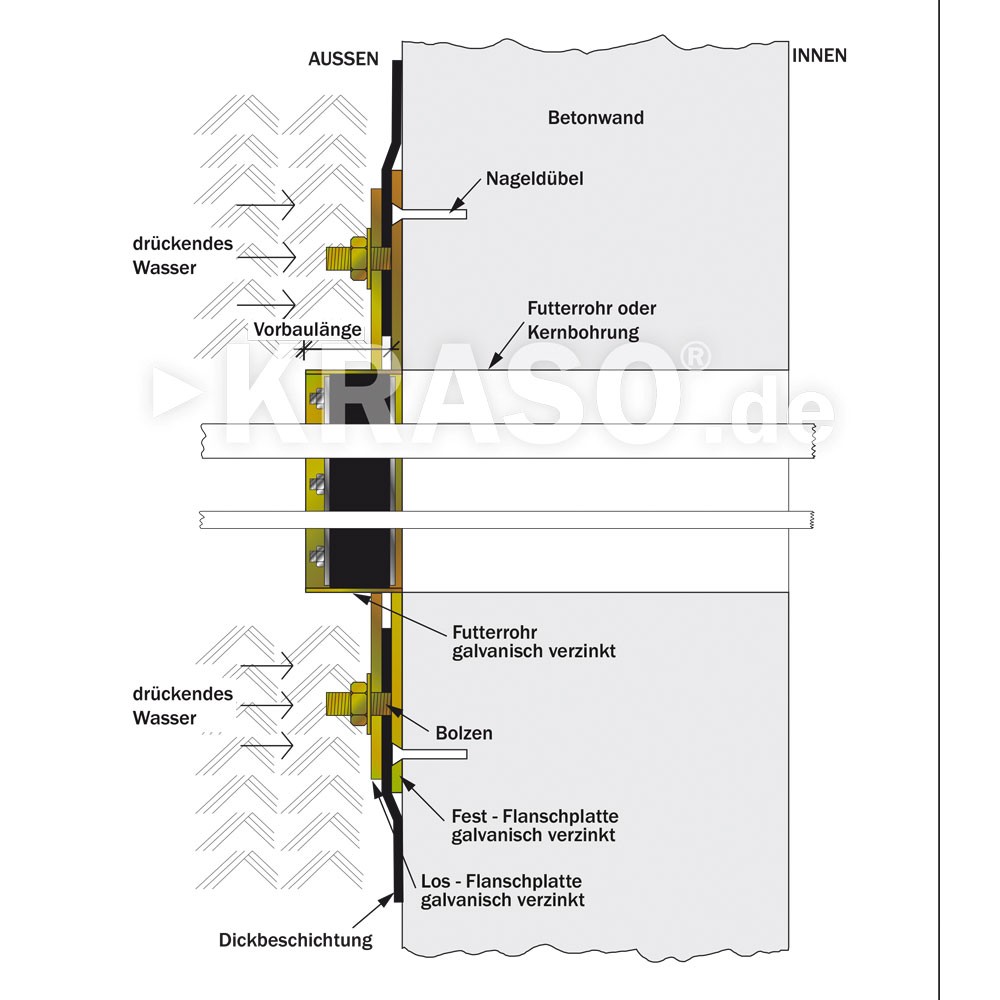

KRASO Casing Type FL/ZA - with special coating - for pressing water (DIN 18533 W2-E)
Scope of supply:
KRASO Casing Type FL/ZA,  as before, but with electrogalvanised steel with special coating

KRASO Casing Type FL/ZA- for non-pressing water (DIN 18533 W1-E)
Scope of supply:
KRASO Casing Type FL/ZA, for non-pressing water (DIN 18533 W1-E), all components are made of electrogalvanised steel, casing with welded fixed-flange, loose-flange, dowels M8 x 100, bolts, nuts and washers M12

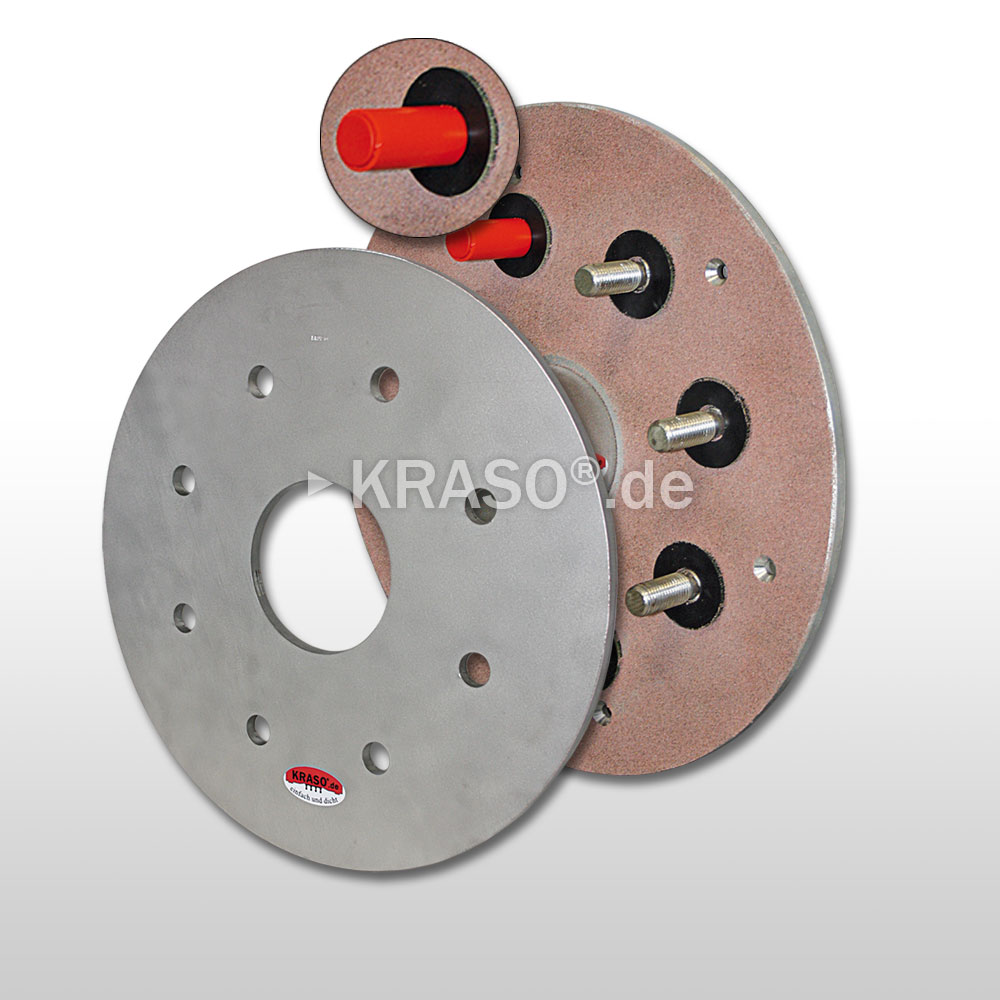

KRASO Casing Type FL/ZA - with special coating - for non-pressing water (DIN 18533 W1-E)
Scope of supply:
KRASO Casing Type FL/ZA, as before, but with electrogalvanised steel with special coating

Further diameters and protrusion available on request !
